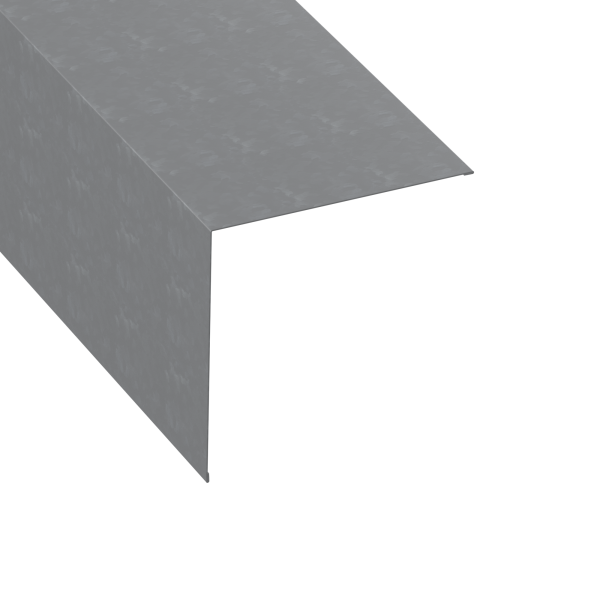

3.000m long, External Corner, Galvanised, 200mm x 200m x 90°

Item
SF1BB200GV
£31.99 £26.66
71 In Stock
payment-logos
  • Buy 9.99 for £28.79 £23.99 each and save 10%
  • Buy 19.99 for £28.00 £23.33 each and save 12%
  • Buy 29.99 for £27.19 £22.66 each and save 15%

Technical Specifications

  • Length - 3.000m
  • Dimensions - 200mm x 200mm
  • Angle - 90 degrees
  • Finish - Plain Galvanised
  • Material - Galvanised Steel
  • Thickness - 0.7mm
  • Weight - 6.24kg
  • Lap - 100mm Minimum
  • Edges - Welted

The external corner flashing, also known as a barge board or verge flashing, is to be used along down the sides of the roof to cap it off and give it a neater finish. They are made to a 90 degree angle which will fall flush on top of the sheets along the side of the run using a 22m stitcher to fix it to the roof sheet. This is manufactured in a plain galvanised finish 0.7mm gauge to provide strength and rigidity. These will go with our 3" corrugated profile stock sheets.


  • 3.000m external corner
  • 200mm x 200mm x 90deg.
  • Plain galvanised finish
  • 0.7mm thickness
  • Lightweight & easy to handle
  • Easy to install
  • Suits our galvanised finish sheets

Where do I use an external corner flashing?
An external corner flashing is used to cap the roof sheets at the sides of the roofs

How much should I lap the external corners over one another?
You should have a minimum of 150mm for lapping the ridges

How do I fix the external corner flashing?
You want to use the stitchers screws to stitch the external corner flashing to the top of the corrugation that the external corner flashing projects out to

Can I get different sized flashings?
Yes, we can manufacture made to order flashings. If you want to make an enquiry, please contact our sales team

Can Southern Sheeting cut flashings?
Southern Sheeting will not cut stock flashings. Made to order flashings can be cut to different lengths and girths
